BSP MALE 60° CONE SEAT SEAL (12611)

British BSP Fittings

BSP Male 60° Cone Seat Seal (12611)

The BSP Male 60° Cone Seat Seal (12611) is a precision-engineered hose end fitting designed for reliable high-pressure hydraulic connections. Available in carbon steel, stainless steel, and brass with multiple surface treatment options for corrosion resistance. Suitable for braided and spiral hose applications across a wide range of industrial sectors.

Application

Widely used in the hydraulic and fluid conveying system of machinery, oilfield, mine, building, transportation, food, and other industries.

Material
Carbon steel, stainless steel, brass

Surface finish
Galvanize Yellow Zinc, Black Zinc, Cr6 free Zinc, and Nickel

Request a quote

Products Specification

20 variants
Hose BoreDimensions
Part No.ThreadDNDashCS
12611-02-04G1/8"X286041012
12611-04-04G1/4"X196041214
12611-04-06G1/4"X1910061217
12611-06-04G3/8"X1960413.517
12611-06-05G3/8"X1980513.517
12611-06-06G3/8"X19100613.517
12611-06-08G3/8"X19120813.517
12611-08-06G1/2"X1410061622
12611-08-08G1/2"X1412081622
12611-10-08G5/8"X14120817.524
12611-10-10G5/8"X14161017.524
12611-12-08G3/4"X14120818.530
12611-12-10G3/4"X14161018.530
12611-12-12G3/4"X14201218.530
12611-16-12G1"X11201220.536
12611-16-16G1"X11251620.536
12611-20-16G1.1/4"X11251620.546
12611-20-20G1.1/4"X11322020.546
12611-24-24G1.1/2"X1138242350
12611-32-32G2"X11513225.565

Note: 1. For use with braided hoses. 2. If use with spiral hoses, hose fitting series number is 1261 2-xx-xx

Key Features

60° cone seat sealing for leak-free connections

Available in carbon steel, stainless steel, and brass

Multiple surface treatment options

Compatible with braided and spiral hoses

Wide size range from G1/8 to G2

High-pressure rated

Compliant with BSP standards

Specifications

Material

Carbon steel, stainless steel, brass

Surface Treatment

Galvanize Yellow Zinc, Black Zinc, Cr6 free Zinc, Nickel

Thread Type

BSP (British Standard Pipe)

Seal Type

60° Cone Seat

Hose Compatibility

Braided hoses (spiral: series 1261 2-xx-xx)

Size Range

G1/8×28 to G2×11

Other Products

Hydronex
fittings

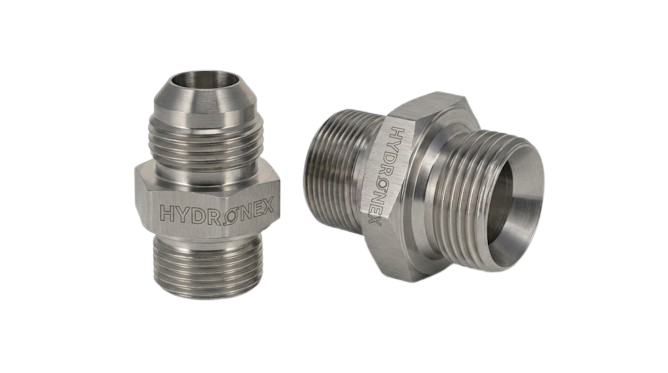

British BSP Fittings
