din
Bent Axis Piston Motors
Torque THPM-010-130 DIN
Hydronex / Bent Axis Piston Motors
ISO
Bent Axis Piston Motors
Torque THPM-010-130 ISO
Torque THPM 012-130 ISO is bent-axis motors an ideal for mobile hydraulics. These motors are spherical pistons as a type of torque bent-axis THPM 012-130 ISO is bent-axis type with spherical pistons. The robust design gives a perfect compact motor with few moving parts, high starting torque and perfect reliability. The displacement is from 12-130 cm/rev with a max 400bar. It comes with double tapered roller bearings that allow high shaft loads and results perfect speed performance. This pump meets the market's high demands due to its high flow performance, pressure efficiency and simplest of installation.
Request a quoteWhere it performs
Applications
Ideal for mobile hydraulics and an ideal solution for applications that require high angular accelerations.

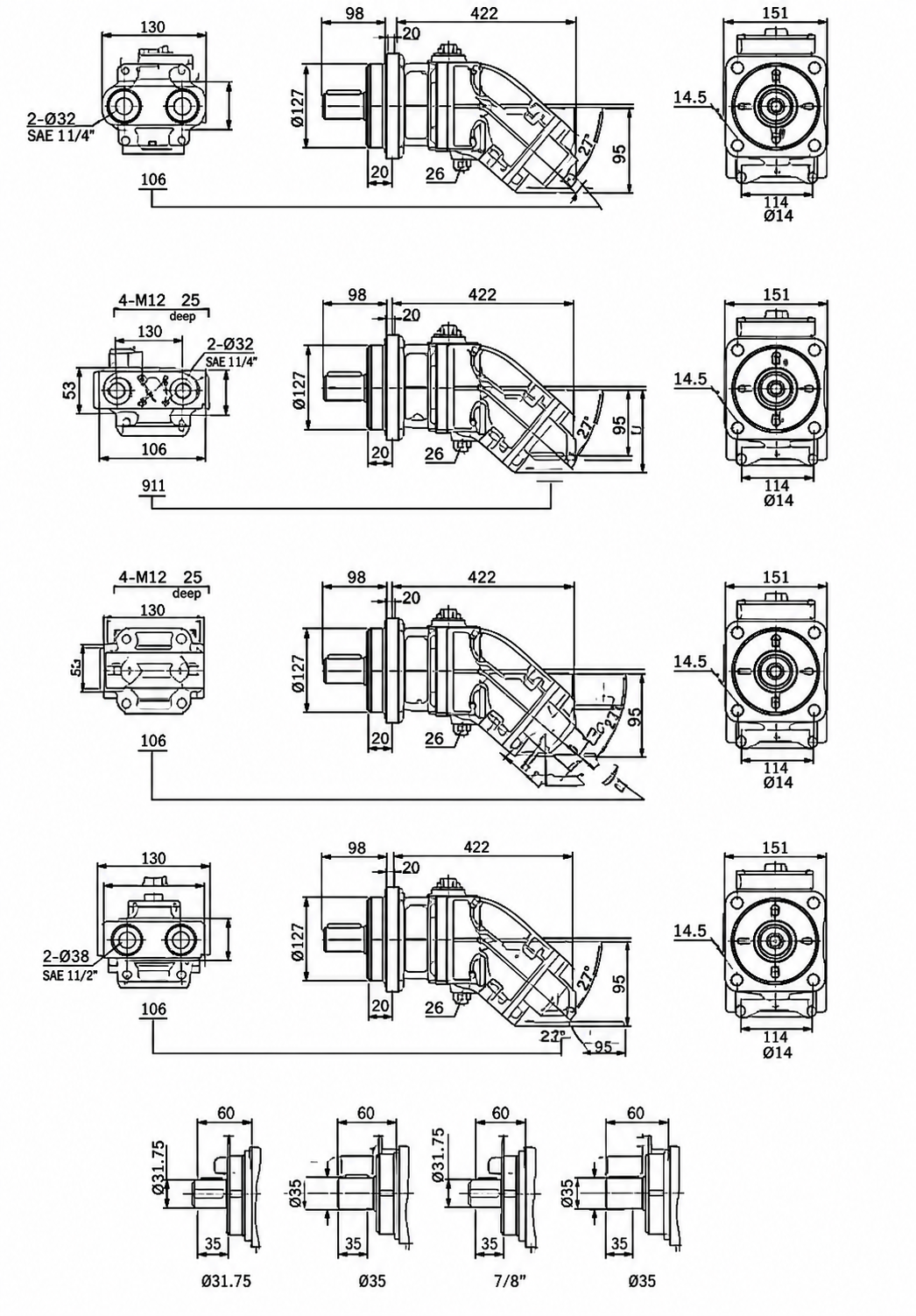

Dimensional Data
Key Features
Low noise levels at high max. speed due to its quality production and design.
The operation over the entire speed range is smooth.
We offer it in many different types of shafts and connections parts.
Long life with high performance.
An ideal solution for applications that require high angular accelerations.
Specifications
Motor type
Bent-axis type with spherical pistons
Displacement
12-130 cm/rev
Maximum pressure
400bar
Applications
Ideal for mobile hydraulics
Bearings
Double tapered roller bearings
