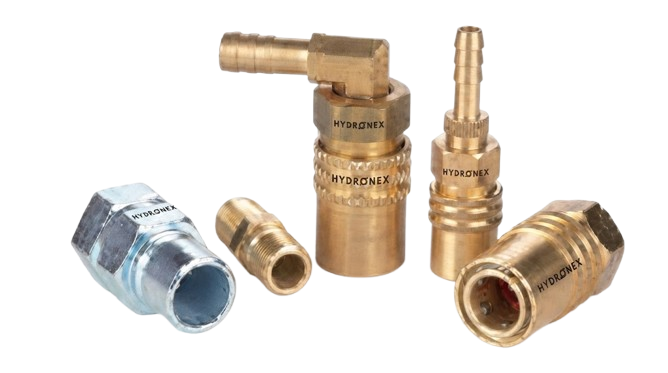

BRASS MOLD COOLANT-LINE QUICK COUPLERS / D-M-E PARKER AND POSTER INTERCHANGE
Brass Mold Coolant-Line Quick Couplers designed for D-M-E, Parker and Poster interchange applications. Available in straight, 45° and 90° configurations to suit any mold coolant routing requirement. Manufactured from brass for excellent corrosion resistance and reliable performance in demanding injection mold cooling circuits.
1
Products
ISO 7241-2
Mold coolant line
Features
- ✓Connexion by pulling back the sleeve
- ✓Disconnection by pulling back the female sleeve
- ✓Connexion under pressure not allowed
- ✓Disconnection under pressure not allowed
- ✓Interchangeability Us Market
Technical Specifications
- •Brass
- •SILICONE (Viton is available on request)
- •-68°C to +205°C
- •According to ISO 7241-2
Standard
ISO 7241-2
Material
Brass
Seal
Silicone / Viton
Temp. Range
-68°C to +205°C

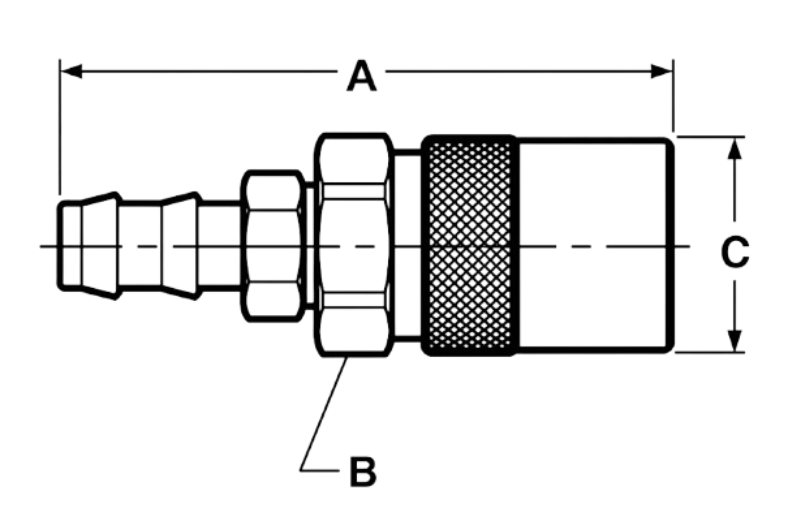

Coupler - Straight
| Part No. | Thread Size (BSPP) | Overall Length (mm) | Exposed Length (mm) | Hex Size (mm) |
|---|---|---|---|---|
| PC204 | 1/4" | 2.1 | 0.62 | 0.71 |
| PC205 | 5/16" | 2.1 | 0.62 | 0.71 |
| PC206 | 3/8" | 2.1 | 0.62 | 0.71 |
| PC306 | 3/8" | 3.01 | 0.88 | 0.96 |
| PC308 | 1/2" | 3.15 | 0.88 | 0.96 |
| PC504 | 1/2" | 3.55 | 1.12 | 1.3 |
| PC506 | 3/4" | 3.8 | 1.12 | 1.21 |

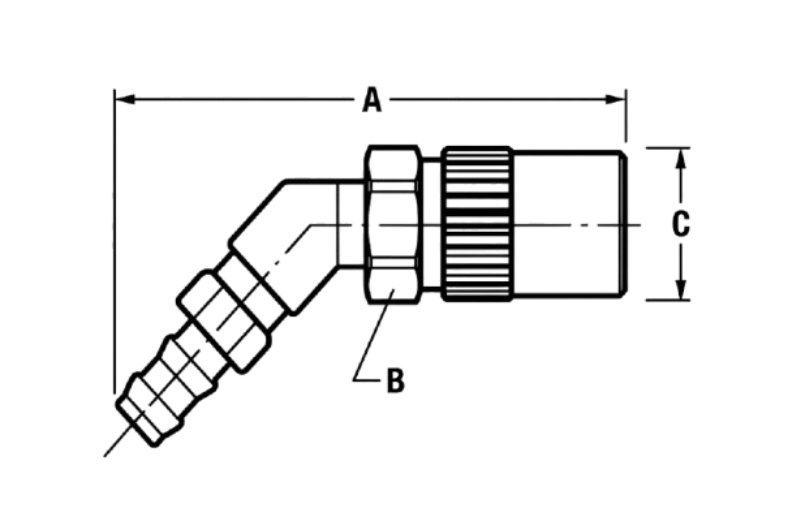

Coupler - 45 Degree
| Part No. | Thread Size (BSPP) | Overall Length (mm) | Exposed Length (mm) | Hex Size (mm) |
|---|---|---|---|---|
| PC224 | 1/4" | 2.67 | 0.56 | 0.71 |
| PC225 | 5/16" | 2.69 | 0.56 | 0.71 |
| PC226 | 3/8" | 2.71 | 0.56 | 0.71 |
| PC326 | 3/8" | 3.65 | 0.88 | 0.96 |
| PC328 | 1/2" | 3.69 | 0.88 | 0.96 |
| PC524 | 1/2" | 4.18 | 1.12 | 1.3 |
| PC526 | 3/4" | 4.56 | 1.12 | 1.21 |

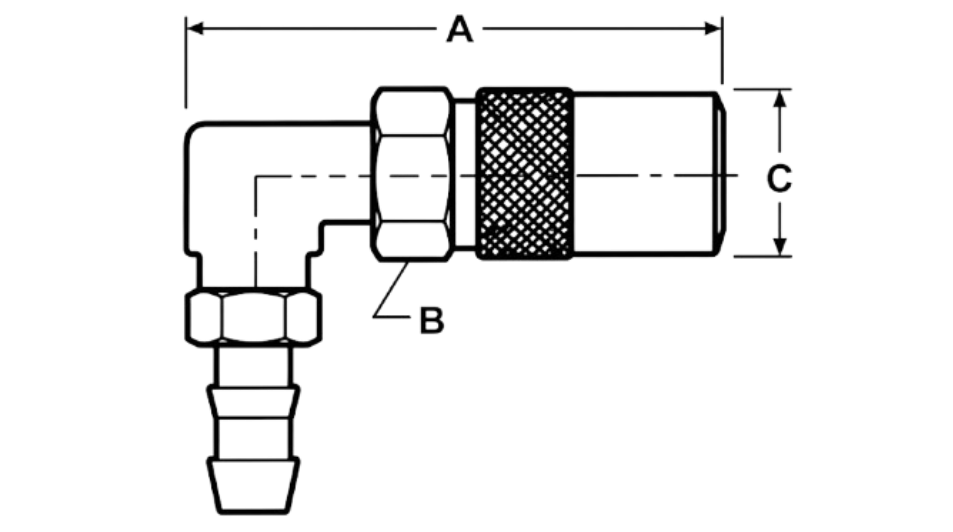

Coupler - 90 Degree
| Part No. | Thread Size (BSPP) | Overall Length (mm) | Exposed Length (mm) | Hex Size (mm) |
|---|---|---|---|---|
| PC214 | 1/4" | 1.78 | 0.56 | 0.71 |
| PC215 | 5/16" | 1.78 | 0.56 | 0.71 |
| PC216 | 3/8" | 1.78 | 0.56 | 0.71 |
| PC316 | 3/8" | 2.78 | 0.88 | 0.96 |
| PC318 | 1/2" | 2.78 | 0.88 | 0.96 |
| PC514 | 1/2" | 3.5 | 1.12 | 1.3 |
| PC516 | 3/4" | 3.5 | 1.12 | 1.21 |

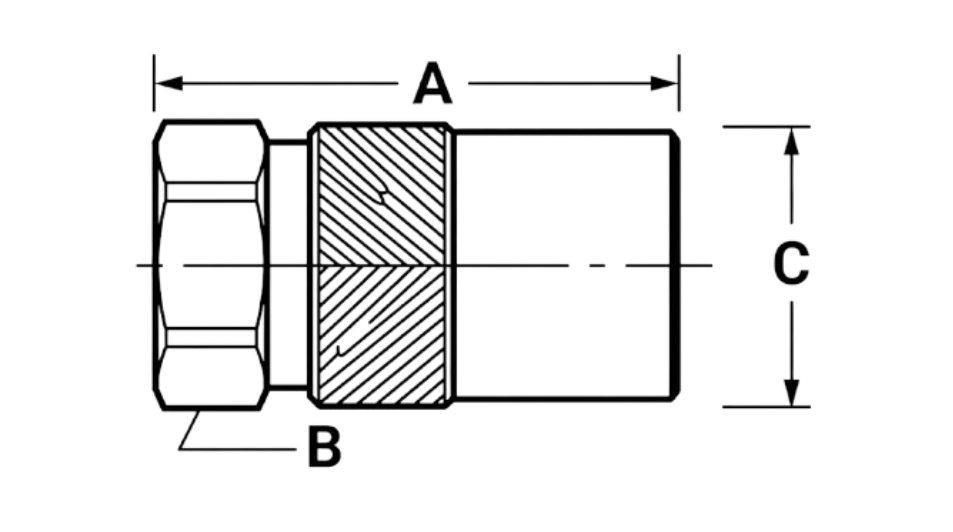

Sub Assemblies
| Part No. | Thread Size (BSPP) | Overall Length (mm) | Exposed Length (mm) | Hex Size (mm) |
|---|---|---|---|---|
| PC200 | 1/8" | 1.78 | 0.56 | 0.71 |
| PC300 | 1/4"-3/8" | 1.78 | 0.56 | 0.71 |
| PC500 | 1/2" | 1.78 | 0.56 | 0.71 |

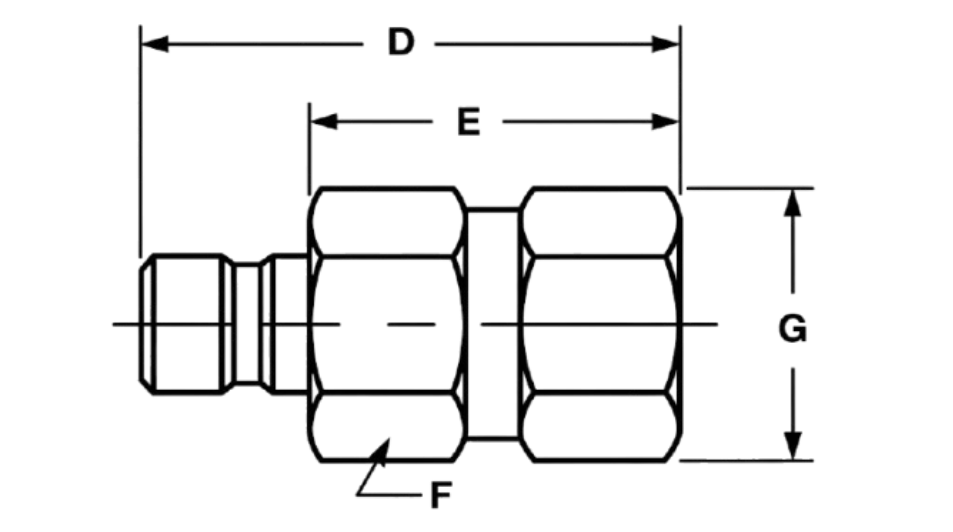

Nipples - Female Pipe Thread
| Part No. | Thread Size | Overall Length D (inch) | Overall Length E (inch) | Hex Size (inch) | Largest Diameter (inch) |
|---|---|---|---|---|---|
| MP251F | 1/8" | 0.97 | 0.58 | 0.58 | 0.5 |
| MP252F | 1/4" | 1.28 | 0.89 | 0.72 | 0.63 |
| MP253F | 3/8" | 1.41 | 1.02 | 0.87 | 0.75 |
| MP352F | 1/4" | 1.48 | 0.88 | 0.72 | 0.63 |
| MP353F | 3/8" | 1.58 | 0.98 | 0.87 | 0.75 |

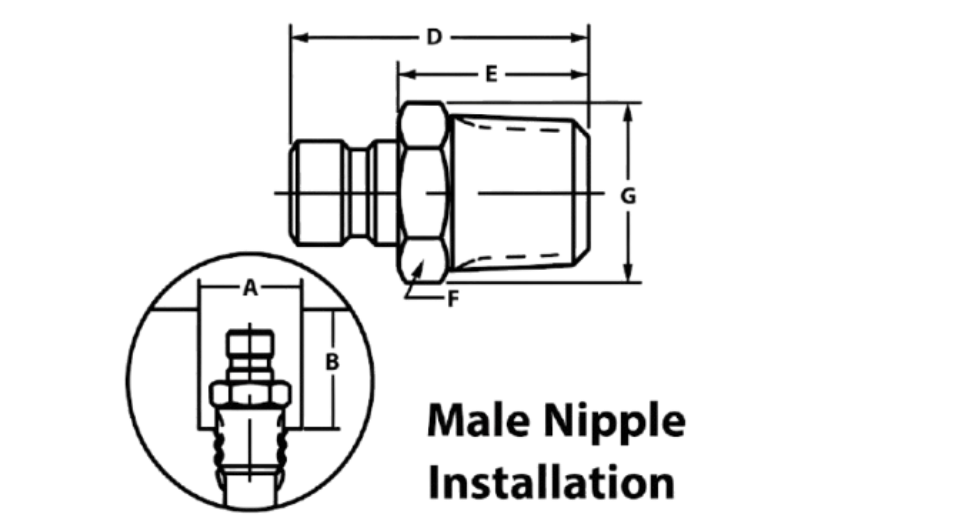

Male Pipe Thread
| Part No. | Thread Size | Overall Length D (inch) | Overall Length E (inch) | Hex Size F (inch) | Largest Dia. G (inch) | Largest Dia. A (inch) | Recess B (inch) |
|---|---|---|---|---|---|---|---|
| PN251 | 1/8" | 0.94 | 0.54 | 0.44 | 0.51 | 0.69 | 0.69 |
| PN252 | 1/4" | 1.13 | 0.74 | 0.56 | 0.67 | 0.84 | 0.94 |
| PN253 | 3/8" | 1.19 | 0.79 | 0.69 | 0.79 | 1 | 0.94 |
| PN352 | 1/4" | 1.34 | 0.74 | 0.56 | 0.65 | 1 | 1.09 |
| PN353 | 3/8" | 1.38 | 0.78 | 0.69 | 0.59 | 1 | 1.13 |
| PN354 | 1/2" | 1.59 | 0.99 | 0.88 | 1.01 | 1.19 | 1.25 |
| PN554 | 1/2" | 1.69 | 0.92 | 0.88 | 1.01 | 1.25 | 1.5 |
| PN556 | 3/4" | 1.75 | 0.99 | 1.12 | 1.3 | 1.5 | 1.56 |

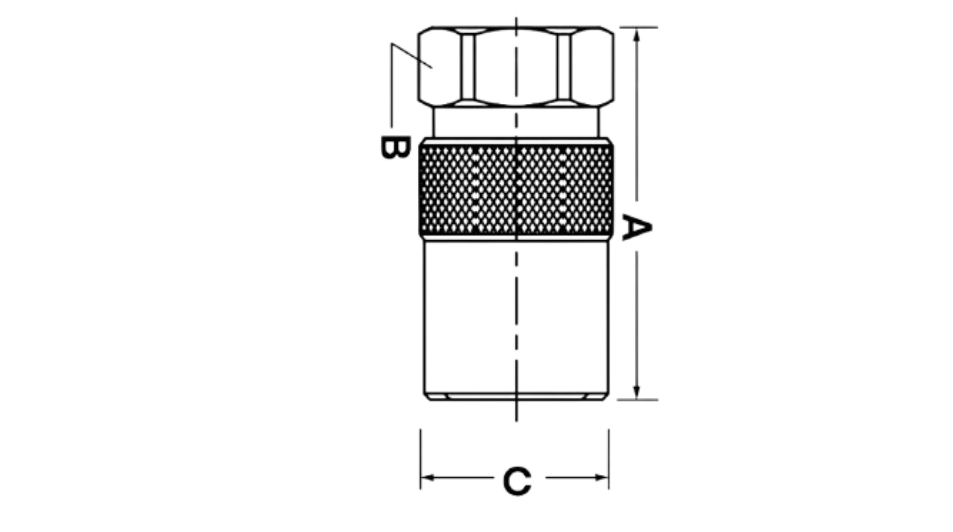

Sub Assemblies
| Part No. | Thread Size | Largest Dia. A (inch) | Recess B (inch) | Hex Size C (inch) |
|---|---|---|---|---|
| PC200V | 1/8" | 1.15 | 0.56 | 0.71 |
| PC300V | 1/4" | 1.84 | 0.88 | 0.96 |

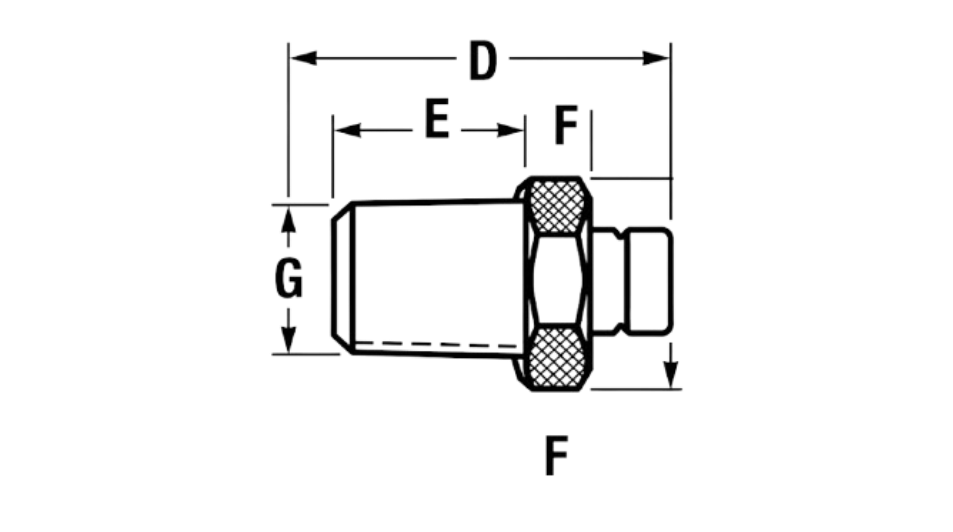

Male Pipe Thread
| Part No. | Thread Size | Overall Length D (inch) | Overall Length E (inch) | Hex Size F (inch) | Largest Diameter G (inch) |
|---|---|---|---|---|---|
| PN252V | 1/4" | 1.13 | 0.74 | 0.56 | 0.67 |
| PN352V | 1/4" | 1.34 | 0.74 | 0.56 | 0.65 |
| PN353V | 3/8" | 1.38 | 1.38 | 0.69 | 0.59 |
Performance Data
| Size 规格 | Working Pressure 工作压力 | Flow Rate 额定流量 @ 0.2 MPa pressure drop | Burst Pressures 爆破压力 | |||
|---|---|---|---|---|---|---|
| mm | inch. | MPa (PSI) | l/min (GPM) | MPa (PSI) | MPa (PSI) | MPa (PSI) |
| 6.3 | 1/4" | 15 (2175) | 16 (4.2) | 45 (6525) | 45 (6525) | 45 (6525) |
| 10 | 3/8" | 15 (2175) | 25 (6.6) | 45 (6525) | 45 (6525) | 45 (6525) |
| 12.5 | 1/2" | 15 (2175) | 60 (15.9) | 45 (6525) | 45 (6525) | 45 (6525) |
Specification Details
| Body Size (in) | Rated Pressure (Bar) | Material | Temperature Range (Std Seals) |
|---|---|---|---|
| 1/4" | 15 | Brass | -20°C to +125°C |
| 3/8" | 15 | Brass | -20°C to +125°C |
| 1/2" | 15 | Brass | -20°C to +125°C |
