DUST PLUG - USED FOR COUPLER (FEMALE HALF) / DUST CAP - USED FOR NIPPLE (MALE HALF)
Protective dust plugs and dust caps designed to keep hydraulic quick couplings clean and contamination-free when not in use. Available in rubber and brass variants to suit all operating environments.
3
Products
ISO 7241
Hydraulic quick couplings
Series
ZE / ZB / TL
Materials
Rubber / Brass
Sizes
1/4" – 1"
Application
ISO 7241 Couplings

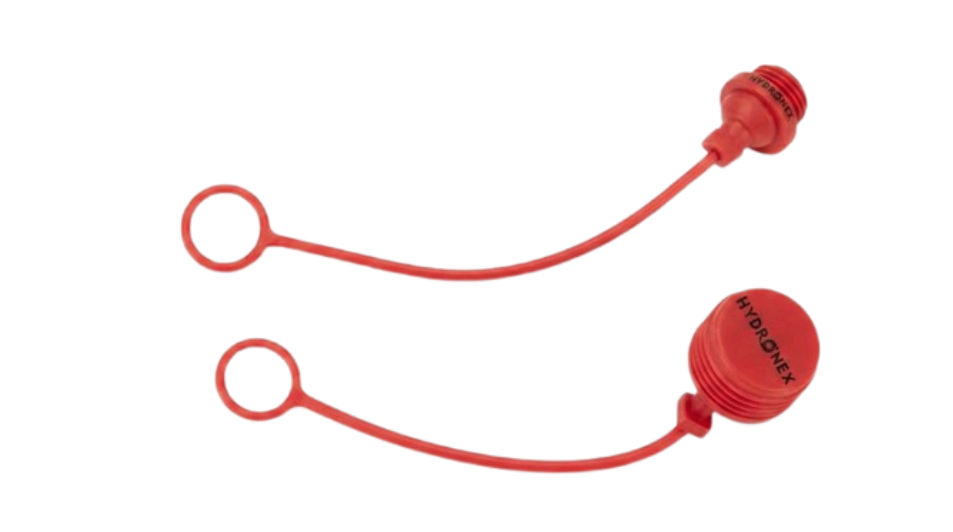

Dust Plug & Cap — ZE Series (ISO-A)
| Size | Dust Plug Part No. (Rubber) — Coupler / Female Half | Dust Cap Part No. (Rubber) — Nipple / Male Half |
|---|---|---|
| 1/4" | CZE-1/4 | PZE-1/4 |
| 3/8" | CZE-3/8 | PZE-3/8 |
| 1/2" | CZE-1/2 | PZE-1/2 |
| 3/4" | CZE-3/4 | PZE-3/4 |
| 1" | CZE-1 | PZE-1 |

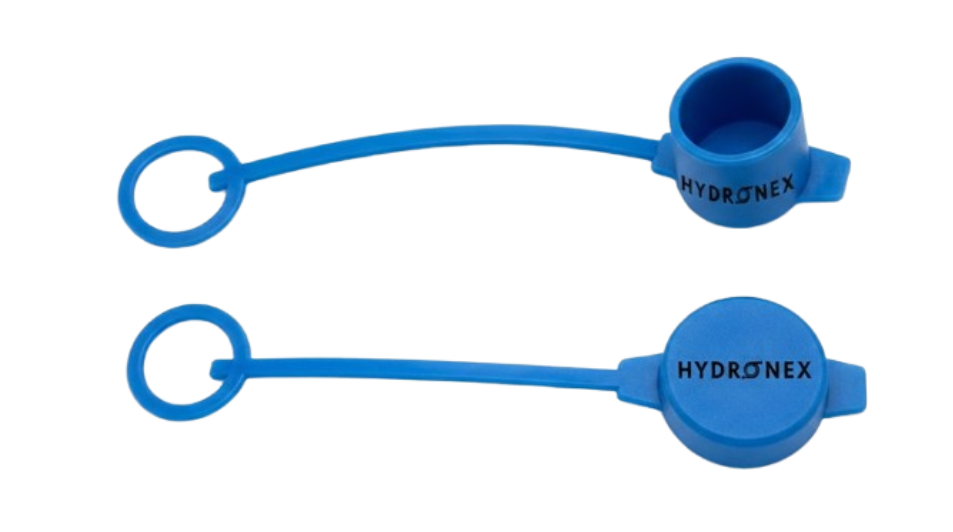

Dust Plug & Cap — ZB Series
| Size | Dust Plug Part No. (Rubber) — Coupler / Female Half | Dust Cap Part No. (Rubber) — Nipple / Male Half |
|---|---|---|
| 1/4" | CZB-1/4 | PZB-1/4 |
| 3/8" | CZB-3/8 | PZB-3/8 |
| 1/2" | CZB-1/2 | PZB-1/2 |
| 3/4" | CZB-3/4 | PZB-3/4 |
| 1" | CZB-1 | PZB-1 |

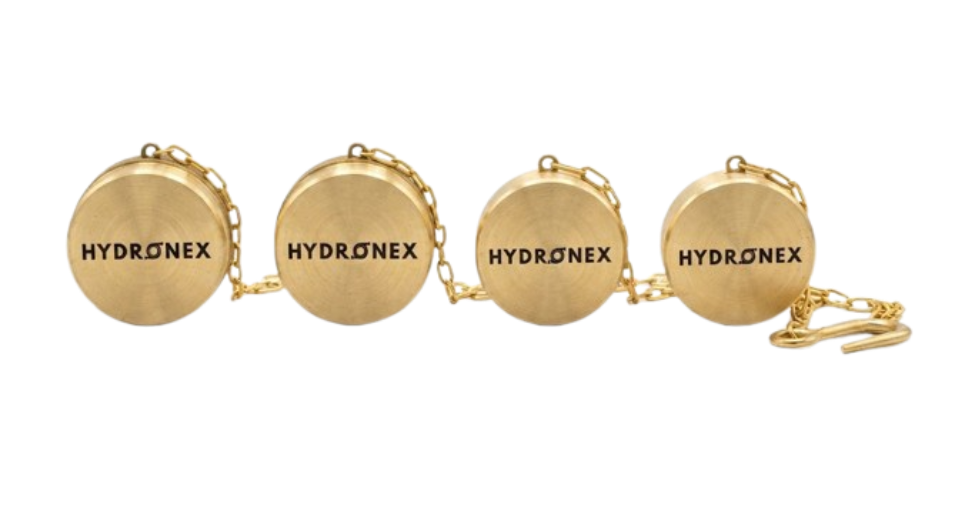

Dust Plug & Cap — TL Series (Brass)
| Size | Dust Plug Part No. (Rubber) — Coupler / Female Half | Dust Cap Part No. (Rubber) — Nipple / Male Half |
|---|---|---|
| 1/4" | CTL-1/4 | PTL-1/4 |
| 3/8" | CTL-3/8 | PTL-3/8 |
