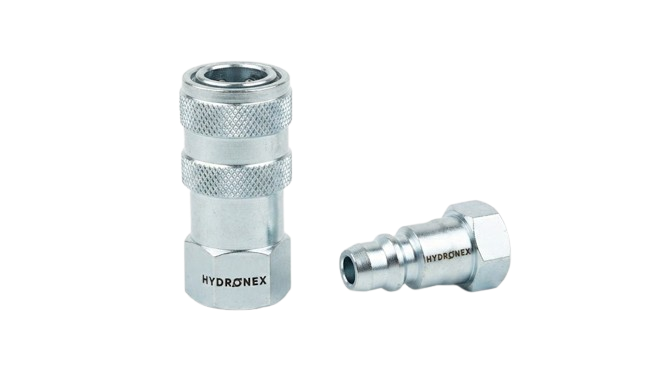

SUPER HIGH PRESSURE HYDRAULIC QUICK COUPLING (STEEL) KTC SERIES
Super high-pressure hydraulic quick couplers engineered for extreme pressure applications up to 10,000 PSI. KTC Series provides reliable performance in the most demanding industrial environments with advanced sealing technology and heavy-duty construction.
1
Products
10,000 PSI
Super high-pressure
Features
- ✓Connexion by screwing together the two parts
- ✓Disconnexion by unscrewing the two parts
- ✓Shut off by poppet valve
- ✓Connectable under residual pressure
- ✓Disconnexion under residual pressure
- ✓Interchangeability according to Par key internal Standards
Technical Specifications
- •High grade carbon steel with heat treated wear parts
- •NBR
- •Backup ring in PTFE
- •-25°C to +125°C (-13°F to +257°F)
- •According to ISO 7241-2

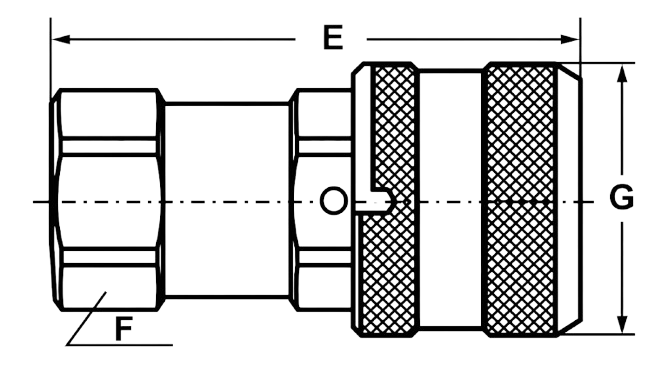

Female Coupler
Precision-engineered female coupler designed for high-pressure applications with advanced sealing technology and reliable connection mechanisms.
| Part No. | Thread | Overall Length (mm) | Hex Size (mm) | Largest Diameter (mm) |
|---|---|---|---|---|
| KTC-03SF | NPT3/8 | 62.5 | 24 | 32 |

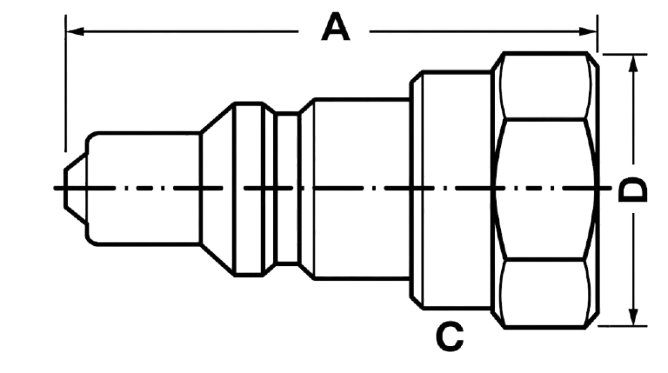

Male Coupler
Heavy-duty male coupler built to handle extreme pressure environments with precision-engineered components ensuring reliable performance in demanding applications.
| Part No. | Thread | Overall Length (mm) | Hex Size (mm) | Largest Diameter (mm) |
|---|---|---|---|---|
| KTC-03PF | NPT3/8 | 44.3 | 24 | 28 |
