KNV Series (Steel)
Advanced quick release hydraulic couplers with flat-face design and enhanced sealing. KNV series provides reliable performance with minimal fluid loss and extended service life. Engineered for applications requiring high reliability and frequent disconnections.
Material
Steel
Surface finish
Chrome Plated
Application
Industrial hydraulic systems, precision equipment, specialized applications, systems requiring reliable quick-disconnect functionality
Quick Release CouplersSTEEL
Quick Release Couplers
KNVSeries(Steel)
Advanced quick release hydraulic couplers with flat-face design and enhanced sealing. KNV series provides reliable performance with minimal fluid loss and extended service life. Engineered for applications requiring high reliability and frequent disconnections.
Material: Steel;
Surface Treat: Chrome Plated;
Application: Industrial hydraulic systems, precision equipment, specialized applications, systems requiring reliable quick-disconnect functionality
Technical Data
Body Size (in)
Specifications
1/4", 3/8", 1/2", 3/4", 1"
Rated Pressure (Bar)
350, 300, 300, 250, 250
Key Features
Connexion by pulling back the sleeve
Disconnection by pulling back the female sleeve
Shut off by poppet valve
Connexion under pressure not allowed
Disconnexion under pressure not allowed
Interchangeability US Market
Specifications
Type
Quick Release - Flat Face
Material
Steel
Surface Treatment
Chrome Plated
Design
Advanced Poppet Valve
Applications
Precision industrial hydraulics
Specialized machinery
Applications requiring frequent disconnections
Equipment with high reliability requirements
Advanced industrial systems
Precision industrial hydraulics
Specialized machinery
Applications requiring frequent disconnections
Equipment with high reliability requirements
Advanced industrial systems
Features
•Connexion by pulling back the sleeve
•Disconnection by pulling back the female sleeve
•Shut off by poppet valve
•Connexion under pressure not allowed
•Disconnexion under pressure not allowed
•Interchangeability US Market
Technical Specifications
•High grade carbon steel with heat treated wear parts
•Polyurethane and NBR Backup ring in PTFE
•-25°C to +125°C (-13°F to +257°F)
•According to ISO 7241-2

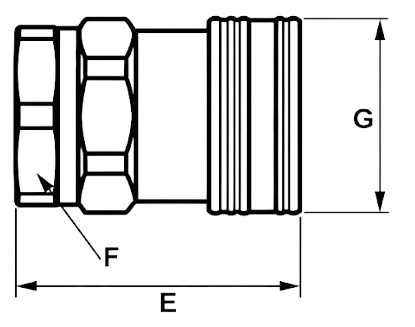

Female
| Part No. | Thread | Overall Length (mm) | Hex Size (mm) | Largest Diameter (mm) | Part No. | Thread | Overall Length (in) | Hex Size (in) | Largest Diameter (in) |
|---|---|---|---|---|---|---|---|---|---|
| KNV-02SF | G1/4 | 50 | 22 | 24 | KNV-N02SE | NPT1/4 | 1.97 | 0.87 | 0.94 |
| KNV-03SF | G3/8 | 57 | 24 | 27 | KNV-N03SF | NPT3/8 | 2.24 | 0.94 | 1.06 |
| KNV-04SF | G1/2 | 65 | 30 | 34 | KNV-N04SF | NPT1/2 | 2.56 | 1.18 | 1.34 |
| KNV-06SF | G3/4 | 64 | 36 | 42 | KNV-N06SE | NPT3/4 | 2.52 | 1.42 | 1.65 |
| KNV-08SF | G1 | 71 | 46 | 51 | KNV-N08SF | NPT1 | 2.8 | 1.81 | 2.01 |
| KNV-10SF | G11/4 | 97 | 50 | 56 | KNV-N10SF | NPT11/4 | 3.82 | 1.97 | 2.2 |
| KNV-12SF | G11/2 | 91 | 65 | 70 | KNV-N12SF | NPT11/2 | 3.58 | 2.56 | 2.76 |
| KNV-16SF | G2 | 120 | 89 | 90 | KNV-N16SF | NPT2 | 4.02 | 3.5 | 3.54 |

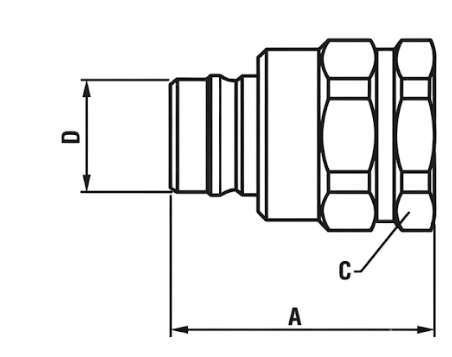

Male
| Part No. | Thread | Overall Length (mm) | Hex Size (mm) | Largest Diameter (mm) | Part No. | Thread | Overall Length (in) | Hex Size (in) | Largest Diameter (in) |
|---|---|---|---|---|---|---|---|---|---|
| KNV-02PF | G1/4 | 49 | 22 | 10.8 | KNV-N02PE | NPT1/4 | 1.93 | 0.87 | 0.43 |
| KNV-03PF | G3/8 | 57 | 24 | 12.9 | KNV-N03PF | NPT3/8 | 2.24 | 0.94 | 0.51 |
| KNV-04PF | G1/2 | 63 | 30 | 16 | KNV-N04PE | NPT1/2 | 2.48 | 1.18 | 0.63 |
| KNV-06PF | G3/4 | 64 | 36 | 23.3 | KNV-N06PF | NPT3/4 | 2.52 | 1.42 | 0.92 |
| KNV-08PF | G1 | 68 | 46 | 29.7 | KNV-N08PF | NPT1 | 2.68 | 1.81 | 1.17 |
| KNV-10PF | G11/4 | 91 | 50 | 36.1 | KNV-N10PE | NPT11/4 | 3.58 | 1.97 | 1.42 |
| KNV-12PF | G11/2 | 85 | 65 | 43.5 | KNV-N12PF | NPT11/2 | 3.35 | 2.56 | 1.71 |
| KNV-16PF | G2 | 98 | 89 | 56.8 | KNV-N16PE | NPT2 | 3.86 | 3.5 | 2.24 |
Performance Specifications
| Size | Working pressure | Flow Rate | Burst Pressures | |||||
|---|---|---|---|---|---|---|---|---|
| mm | inch | MPa (PSI) | @0.2 MPa drop | l/min (GPM) | @ 0.2 MPa drop | MPa (PSI) | MPa (PSI) | MPa (PSI) |
| 6.3 | 1/4" | 27 (3915) | — | 22 (5.81) | — | 110 (15950) | 160 (23200) | 110 (15950) |
| 10 | 3/8" | 30 (4350) | — | 65 (17.17) | — | 160 (23200) | 180 (26100) | 120 (17400) |
| 12.5 | 1/2" | 22 (3190) | — | 75 (19.82) | — | 88 (12760) | 90 (4350) | 88 (12760) |
| 20 | 3/4" | 19 (2755) | — | 170 (44.91) | — | 76 (11020) | 76 (11020) | 76 (11020) |
| 25 | 1" | 15 (2175) | — | 280 (73.98) | — | 60 (8700) | 60 (8700) | 60 (8700) |
| 31.5 | 1 1/4" | 10 (1450) | — | 450 (118.89) | — | 40 (5800) | 50 (7250) | 50 (7250) |
| 40 | 1 1/2" | 11 (1595) | — | 450 (118.89) | — | 45 (6525) | 45 (6525) | 45 (6525) |
| 50 | 2" | 10 (1450) | — | 1100 (290.62) | — | 40 (5800) | 40 (5800) | 40 (5800) |
