ISO-A Couplers
KZE -ISO 7241 A (Steel Ball - Kzeb Series)
ISO-A COUPLERS - KZE SERIES QUICK CONNECTORS
ISO 7241-A standard specifies the interface dimensions and basic performance requirements of hydraulic quick connectors.
3
Products
ISO-A
ISO 7241-A Standard
Hydraulic Quick Couplings / ISO-A
ISO-A CouplersKZE Series Quick Connectors
ISO 7241-A standard specifies the interface dimensions and basic performance requirements of hydraulic quick connectors, which are widely used in fields such as agricultural and forestry machinery. A series hydraulic quick connectors are mainly used in Europe and are the first choice for agricultural and forestry machinery worldwide. Features: pressure resistance, temperature resistance, corrosion resistance, ensuring the reliability and safety of the connector in various working environments.
ISO 7241 A From the perspective of sealing, there are spherical seals and cone seals. KZE KZEB are the models of Sinopulse.
ISO 7241 A series are available in different materials, including carbon steel, stainless steel (SS304, SS316 optional) and copper.
ISO 7241 A KZE is available in male and female versions, which can be purchased together or separately.
Key Features
✓
The new design can resist the impact of high-speed fluid and pulse pressure, providing higher performance
✓
When the connector is disconnected, the valve core automatically closes to prevent leakage
✓
After the connector is connected, it automatically opens to keep the fluid flowing within the rated working range
✓
Key components are induction hardened for good durability
✓
Reliable ball lock mechanism combines the matching halves
✓
Female socket and male plug are precision-made from solid bar stock
✓
This connector complies with ISO7241-A standard
✓
KZE is interchangeable with the following products: PARKER 6600 series, FASTER ANV series, AEROQUIP 5600 series, HANSEN series HA15000 Series
Material Options

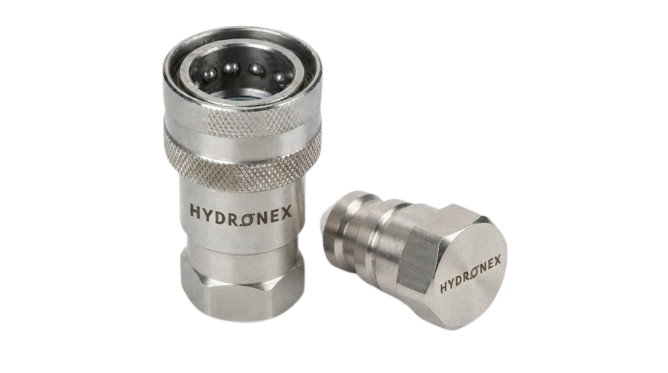

KZE SS -ISO 7241 A Series (Stainless Steel 304)
KZE connectors are widely used in various industrial connections, mainly for construction equipment, forest equipment, agricultural machinery, hydraulic machinery, petroleum equipment, steel equipment, chemicals, and other hydraulic applications.
Application
The connectors are used in a wide range of hydraulic applications. This type of double-stop connector can be used in the following situations: the fluid delivery pipeline needs to be connected and disconnected due to equipment operation or maintenance, and it is hoped that no fluid loss will occur. KZE SS connectors are mainly used for hydraulic fluid pipelines, but are also used for chemical water, steam and some gas pipelines.
