KZE -ISO 7241 A (Steel - Kze Series)
Hydronex / ISO-A Couplers
SERIES
ISO-A Couplers
KZE Steel Ball (Kzeb)
Premium ISO 7241-A quick couplers with steel ball locking mechanism designed for agricultural and forestry machinery applications. Features automatic pressure-actuated poppet valve system.
Application
Agricultural machinery, forestry equipment, construction equipment, irrigation systems
Material
High-grade carbon steel with heat-treated wear parts
Surface finish
Polyurethane and NBR backup ring in PTFE
Key Features
Connexion by pulling back the sleeve
Disconnection by pulling back the female sleeve
Steel Ball
Connexion under pressure not allowed
Disconnection under pressure not allowed
Interchangeability according to ISO 7241-1 part A
Specifications
Material
High-grade carbon steel with heat-treated wear parts
Backup Ring
Polyurethane and NBR backup ring in PTFE
Temperature Range
-25°C to +100°C (-13°F to +212°F)
Standard
According to ISO 7241-2
Nipple Female Thread / Male
| Part No | Thread | Overall Length | Exposed Length | Hex Size | Largest Diameter | Part No2 | Thread2 | Overall Length2 | Exposed Length2 | Hex Size2 | Largest Diameter2 |
|---|---|---|---|---|---|---|---|---|---|---|---|
| KZEB-02PF | G1/4 | 32 | 15 | 19 | 22 | KZEB-N02PF | NPT1/4 | 1.27 | 0.58 | 0.75 | 0.87 |
| KZEB-03PF | G3/8 | 37 | 18 | 22 | 26 | KZEB-N03PF | NPT3/8 | 1.47 | 0.72 | 0.88 | 1.01 |
| KZEB-04PF | G1/2 | 46 | 20 | 27 | 31 | KZEB-N04PF | NPT1/2 | 1.82 | 0.78 | 1.06 | 1.23 |
| KZEB-06PF | G3/4 | 58 | 30 | 35 | 40 | KZEB-N06PF | NPT3/4 | 2.29 | 1.18 | 1.38 | 1.59 |
| KZEB-08PF | G1 | 66 | 34 | 41 | 48 | KZEB-N08PF | NPT1 | 2.58 | 1.34 | 1.62 | 1.88 |
| KZEB-10PF | G1 1/4 | 75 | 36 | 54 | 59 | KZEB-N10PF | NPT1 1/4 | 2.95 | 1.41 | 2.12 | 2.32 |
| KZEB-12PF | G1 1/2 | 86 | 38 | 60 | 68 | KZEB-N12PF | NPT1 1/2 | 3.38 | 1.49 | 2.36 | 2.67 |
| KZEB-16PF | G2 | 100 | 77 | 77 | 84 | KZEB-N16PF | NPT2 | 3.93 | 3.03 | 3.03 | 3.3 |

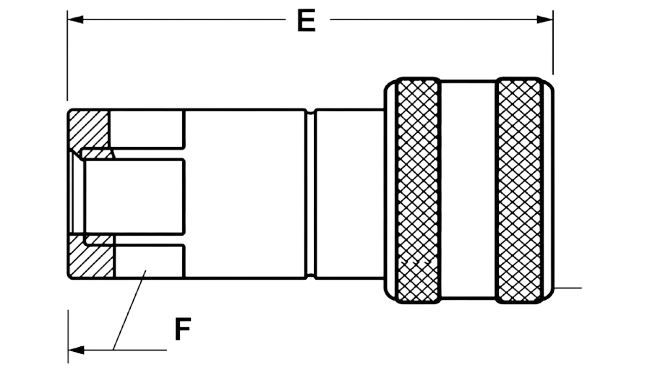

Couplers Female Thread / Female
| Part No | Thread | Overall Length | Hex Size | Largest Diameter | Part No2 | Thread2 | Overall Length2 | Hex Size2 | Largest Diameter2 |
|---|---|---|---|---|---|---|---|---|---|
| KZEB-02SF | G1/4 | 47 | 22 | 27 | KZEB-02SF | NPT1/4 | 1.85 | 0.88 | 1.08 |
| KZEB-03SF | G3/8 | 55 | 27 | 32 | KZEB-03SF | NPT3/8 | 2.18 | 1.06 | 1.27 |
| KZEB-04SF | G1/2 | 70 | 32 | 39 | KZEB-04SF | NPT1/2 | 2.75 | 1.25 | 1.52 |
| KZEB-06SF | G3/4 | 85 | 41 | 48 | KZEB-06SF | NPT3/4 | 3.36 | 1.62 | 1.9 |
| KZEB-08SF | G1 | 104 | 48 | 54 | KZEB-08SF | NPT1 | 4.11 | 1.88 | 2.14 |
| KZEB-10SF | G1 1/4 | 110 | 54 | 69 | KZEB-10SF | NPT1 1/4 | 4.33 | 2.12 | 2.71 |
| KZEB-12SF | G1 1/2 | 128 | 60 | 82 | KZEB-12SF | NPT1 1/2 | 5.03 | 2.36 | 3.22 |
| KZEB-16SF | G2 | 153 | 77 | 100 | KZEB-16SF | NPT2 | 6.02 | 3.03 | 3.93 |
Performance Specifications
| Size | Inch | Pressure | Flow Rate | Burst P1 | Burst P2 | Burst P3 |
|---|---|---|---|---|---|---|
| 6.3 | 1/4" | 35 (5000) | 9 (2.4) | 160 (24000) | 120 (18000) | 140 (21000) |
| 10 | 3/8" | 30 (4500) | 30 (7.9) | 160 (24000) | 120 (18000) | 140 (21000) |
| 12.5 | 1/2" | 30 (4500) | 75 (19.8) | 130 (19500) | 120 (18000) | 130 (19500) |
| 20 | 3/4" | 30 (4500) | 180 (47.6) | 120 (18000) | 120 (18000) | 120 (18000) |
| 25 | 1" | 25 (3625) | 270 (71.4) | 100 (14500) | 100 (14500) | 100 (14500) |
| 31.5 | 1 1/4" | 25 (3625) | 330 (87.3) | 100 (14500) | 100 (14500) | 100 (14500) |
| 40 | 1 1/2" | 20 (3000) | 450 (119) | 80 (12000) | 80 (12000) | 80 (12000) |
| 50 | 2" | 15 (2250) | 900 (238) | 60 (9000) | 60 (9000) | 60 (9000) |
Dust Protection
| mm | inch | PVC | Aluminum | ||
|---|---|---|---|---|---|
| Part Number | Colour | Part Number | Colour | ||
| 6.3 | 1/4 | CZE-1/4 | PZE-1/4 | ||
| 10 | 3/8 | CZE-3/8 | PZE-3/8 | ||
| 12.5 | 1/2 | CZE-1/2 | PZE-1/2 | ||
| 20 | 3/4 | CZE-3/4 | PZE-3/4 | ||
| 25 | 1 | CZE-1 | PZE-1 | ||
