720B
Banjo Fittings
BSP BANJO (720B)
BANJO FITTINGS - COMPACT & EFFICIENT
Hydronex supplies a comprehensive range of banjo fittings featuring compact design and reliable performance.
6
Products
BANJO
BSP & metric standards
Hydraulic Fittings / Banjo
Compact HydraulicBanjo Fittings
Hydronex supplies a comprehensive range of banjo fittings engineered for compact, efficient hydraulic connections. These specialized fittings combine precision manufacturing with reliable performance, available in both BSP and metric standards to meet diverse industrial application requirements.
72011
Banjo Fittings

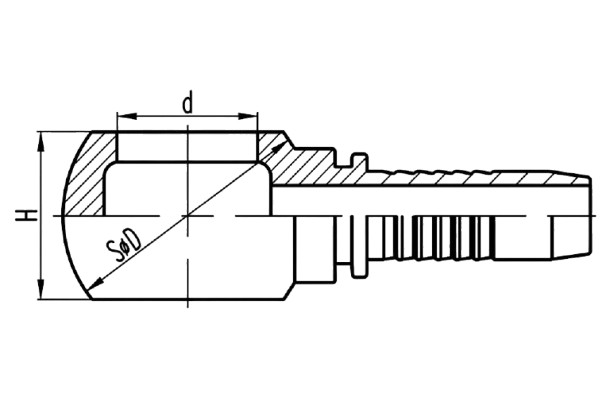

BSP BANJO (72011)
70011
Banjo Fittings

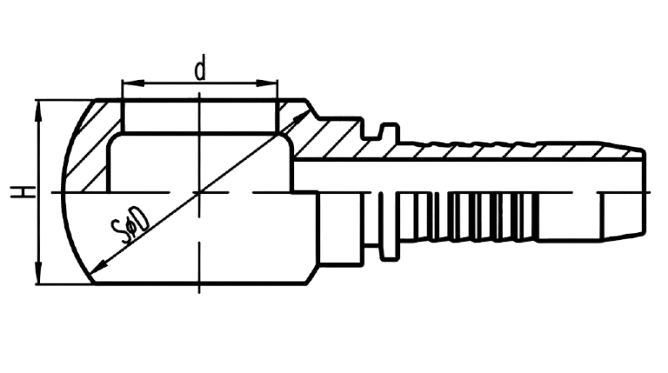

METRIC BANJO (70011)
700M
Banjo Fittings

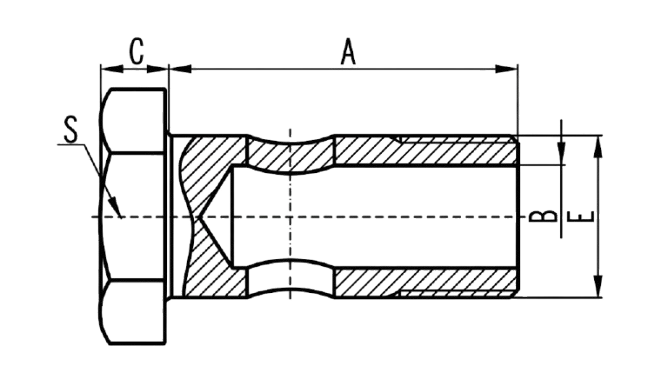

METRIC BANJO (700M)
BOLT
Banjo Fittings

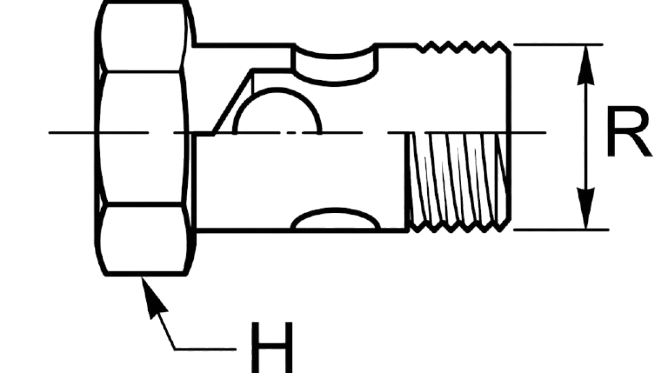

700M BANJO BOLT DIN METRIC THREAD
70011F
Banjo Fittings

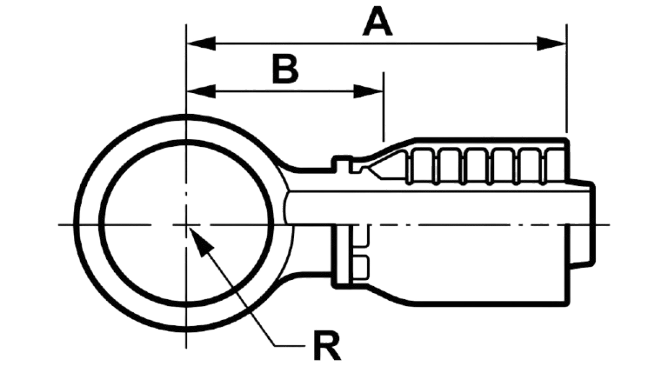

70011F DIN METRIC BANJO
What is banjo fitting
Banjo fittings, characterized by their unique circular shape and hollow bolt, are indispensable components in hydraulic and pneumatic systems. Their ability to rotate 360 degrees makes them ideal for applications where space is limited and flexible connections are required. Banjo fittings are commonly used in hydraulic and pneumatic systems, finding applications in areas such as automotive brake lines, fuel systems, industrial machinery, and medical equipment.
Banjo fittings derive their name from their unique shape, resembling a banjo, with a round body and a bolt passing through its center. These fittings are particularly crucial in situations where space constraints and flexibility are important, enabling secure and flexible connections.
Banjo Fitting Design
The banjo fitting design is clever yet simple, and highly efficient, consisting of several key components that work together to ensure optimal performance:
Body:
The body of the banjo fitting is typically round with a hollow cylindrical shape. It features inlet and outlet ports for fluid flow, usually connecting to hoses or pipes. The body is designed to house the bolt, allowing fluid to pass through while maintaining a secure connection.
Bolt:
The bolt is a crucial component that passes through the center of the fitting body. It is usually hollow, allowing fluid to flow through its center. The bolt has a threaded end that allows it to be secured and tightened to the fitting. Holes in the bolt shaft allow fluid to enter and exit the fitting body, ensuring continuous flow.
Eyelet:
The eyelet, or the angular part of the fitting body, surrounds the bolt. It allows the bolt to be secured within the fitting while providing an opening for fluid flow. The eyelet's design ensures that the fitting can be tightened without restricting fluid flow.
Seals (O-rings):
To prevent leaks and ensure a secure connection, banjo fittings are equipped with seals, typically made of rubber or synthetic materials. These O-rings fit snugly against the bolt and the inside of the fitting body, creating a tight seal that prevents fluid leakage and contaminants from entering the system.
