Thread Locked Type Hydraulic Couplings(Steel) Kcv Series
The KCV Series Thread Locked Type Hydraulic Couplings offer a compact, reliable solution for standard industrial hydraulic connections. Constructed from high-grade carbon steel with precision machining, these couplings provide consistent thread-locked performance across a broad range of pressures and flow rates.
Material
Carbon Steel
Surface finish
Zinc Plated
Application
General industrial hydraulics, OEM equipment, maintenance applications
Threaded CouplersSERIES
Threaded Couplers
ThreadLockedTypeHydraulicCouplings(Steel)KcvSeries
The KCV Series Thread Locked Type Hydraulic Couplings offer a compact, reliable solution for standard industrial hydraulic connections. Constructed from high-grade carbon steel with precision machining, these couplings provide consistent thread-locked performance across a broad range of pressures and flow rates.
Material: Carbon Steel;
Surface Treat: Zinc Plated;
Application: General industrial hydraulics, OEM equipment, maintenance applications
Technical Data
Body Size (in)
Specifications
1/4", 3/8", 1/2", 3/4", 1"
Rated Pressure (Bar)
350, 300, 300, 250, 250
Key Features
Connexion by screwing together the two parts
Disconnexion by unscrewing the two parts
Shut off by poppet valve
Connectable under residual pressure
Disconnexion under residual pressure
Interchangeability German Market
Specifications
Standard
ISO 7241-2
Body Material
Carbon Steel
Seal Material
NBR
Surface Treatment
Zinc Plated
Technical Specifications
- High-grade carbon steel with heat treated wear parts
- NBR
- Backup ring in PTFE
- -25°C to +125°C (-13°F to +257°F)
- According to ISO 7241-2
Applications
OEM hydraulic equipment
Industrial maintenance
Agricultural and forestry machinery
Construction and mining equipment
OEM hydraulic equipment
Industrial maintenance
Agricultural and forestry machinery
Construction and mining equipment
Nipple Female Thread / Male
| Part No. | Thread Size | Overall Length (mm) | Hex Size (mm) | Largest Diameter (mm) | Part No. | Thread Size | Overall Length (inch) | Hex Size (inch) | Largest Diameter (inch) |
|---|---|---|---|---|---|---|---|---|---|
| KCV-02PF | G1/4 | 64 | 19 | 30 | KCV-N02PF | NPT1/4 | 2.52 | 0.75 | 1.18 |
| KCV-03PF | G3/8 | 68 | 24 | 34 | KCV-N03PF | NPT3/8 | 2.68 | 0.94 | 1.34 |
| KCV-04PF | G1/2 | 68 | 27 | 42 | KCVM04PE | NPT1/2 | 2.68 | 1.06 | 1.65 |
| KCV-06PF | G3/4 | 85 | 38 | 48 | KCV-N06PF | NPT3/4 | 3.34 | 1.5 | 1.89 |
| KCV-08PF | G1 | 95 | 42 | 56 | KCV-N08PF | NPT1 | 3.74 | 1.65 | 2.2 |
| KCV-10PF | G1 1/4 | 131 | 50 | 80 | KCV-N10PF | NPT1 1/4 | 5.16 | 1.97 | 3.15 |
| KCW12PE | G1 1/2 | 131 | 55 | 80 | KCV-N12PF | NPT1 1/2 | 5.16 | 2.17 | 3.15 |

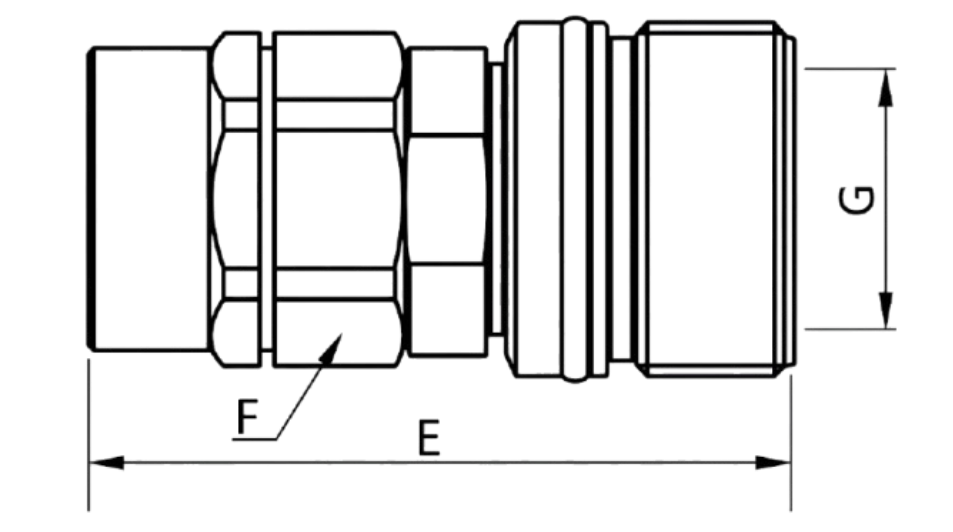

Male – Metric Thread
| Part No. | Thread Size | Overall Length (mm) | Hex Size (mm) | Largest Diameter (mm) |
|---|---|---|---|---|
| KCV-14PF | MM14X1.5 | 64 | 19 | 30 |
| KCV-16PF | MM16X1.5 | 68 | 24 | 34 |
| KCV-18PF | MM18X1.5 | 68 | 27 | 42 |
| KCV-22PF | MM22X1.5 | 85 | 38 | 48 |
| KCV-30PF | MM30X1.5 | 95 | 42 | 56 |
| KCV-36PF | MM36X1.5 | 131 | 50 | 80 |
| KCV-42PF | MM42X1.5 | 131 | 55 | 80 |

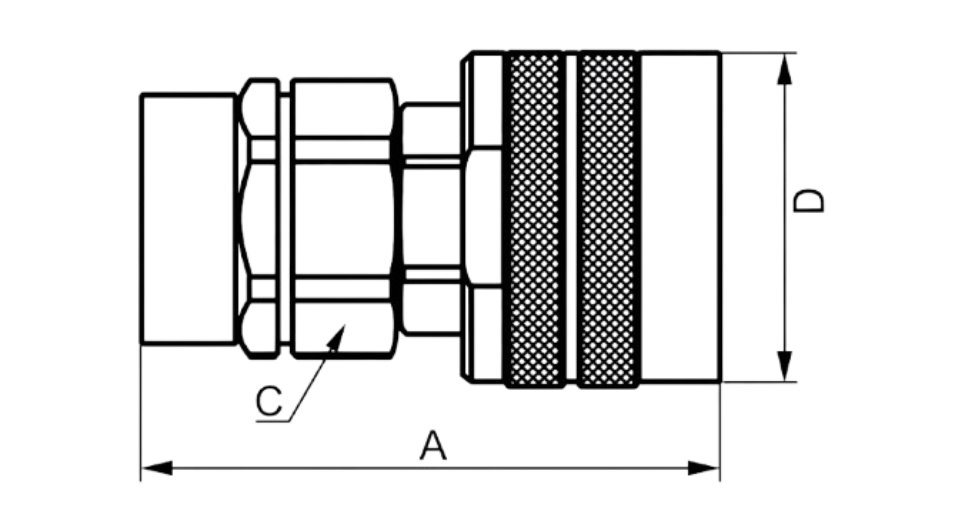

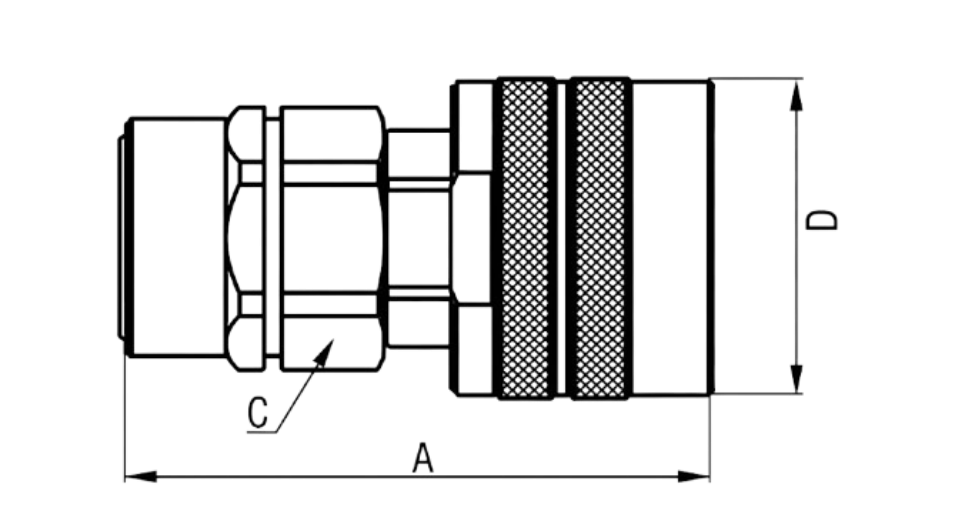

Couplers Female Thread / Female
| Part No. | Thread | Overall Length (mm) | Hex Size (mm) | Largest Diameter (mm) | Part No. | Thread | Overall Length (in.) | Hex Size (in.) | Largest Diameter (in.) |
|---|---|---|---|---|---|---|---|---|---|
| KCV-02SF | G1/4 | 58 | 19 | 13.1 | KCMN028E | NPT | 2.28 | 0.75 | 0.52 |
| KCV-03SF | G3/8 | 65 | 24 | 17.6 | KCN038E | NPT3/8 | 2.55 | 0.94 | 0.69 |
| KCV-04SE | G1/2 | 67 | 27 | 22 | KCV-N04SF | NPT1/2 | 2.63 | 1.06 | 0.87 |
| KCV-06SF | G3/4 | 83 | 38 | 28.1 | KCV-N06SF | NPT3/4 | 3.27 | 1.5 | 1.11 |
| KCV-08SF | G1 | 95 | 42 | 35 | KCV-N08SF | NPT1 | 3.74 | 1.65 | 1.38 |
| KCV-10SF | G1 1/4 | 110 | 50 | 54 | KCV-N10SF | NPT1 1/4 | 4.33 | 1.97 | 2.13 |
| KCV-12SF | G1 1/2 | 121 | 55 | 54 | KCV-N12SF | NPT1 1/2 | 4.76 | 2.17 | 2.13 |
Female – Metric Thread
| Part No. | Thread Size | Overall Length (inch) | Hex Size (inch) | Largest Diameter (inch) |
|---|---|---|---|---|
| KCV-14SF | MM14X1.5 | 2.52 | 0.75 | 0.52 |
| KCV-16SF | MM16X1.5 | 2.68 | 0.94 | 0.69 |
| KCV-18SF | MM18X1.5 | 2.68 | 1.06 | 0.87 |
| KCV-22SF | MM22X1.5 | 3.35 | 1.5 | 1.89 |
| KCV-30SF | MM30X1.5 | 3.74 | 1.65 | 2.2 |
| KCV-36SF | MM36X1.5 | 5.16 | 1.97 | 3.15 |
| KCV-42SF | MM42X1.5 | 5.16 | 2.17 | 3.15 |
Specification Details
| Body Size (in) | Rated Pressure (Bar) | Flow Rate (L) | Material | Standard Seal Material | Temperature Range |
|---|---|---|---|---|---|
| 1/4" | 500 | 13 | Carbon Steel | NBR | -20 to +125 |
| 3/8" | 400 | 25 | Carbon Steel | NBR | -20 to +125 |
| 1/2" | 400 | 75 | Carbon Steel | NBR | -20 to +125 |
| 3/4" | 350 | 135 | Carbon Steel | NBR | -20 to +125 |
| 1" | 350 | 250 | Carbon Steel | NBR | -20 to +125 |
| 1-1/2" | 350 | 450 | Carbon Steel | NBR | -20 to +125 |
Dust Protection
| Dust protections - 防尘帽 | Dust protections - 防尘帽 | ||||||
|---|---|---|---|---|---|---|---|
| PVC | Aluminum | PVC | Aluminum | ||||
| mm | inch | Part Number | Colour | Part Number | Part Number | Colour | Part Number |
| 6.3 | 1/4 | CCV-1/4 | CCV-1/4S | PCV-1/4 | PCV-1/4S | ||
| 10 | 3/8 | CCV-3/8 | CCV-3/8S | PCV-3/8 | PCV-3/8S | ||
| 12.5 | 1/2 | CCV-1/2 | CCV-1/2S | PCV-1/2 | PCV-1/2S | ||
| 20 | 3/4 | CCV-3/4 | CCV-3/4S | PCV-3/4 | PCV-3/4S | ||
| 25 | 1 | CCV-1 | CCV-1S | PCV-1 | PCV-1S | ||
| 40 | 1 1/2 | CCV-1 1/2 | CCV-1 1/2S | PCV-1 1/2 | PCV-1 1/2S | ||
Performance Specifications
| Size (mm) | Size (in.) | Working Pressure (MPa/PSI) | Flow Rate (l/min / GPM) | Burst Pressure 1 (MPa/PSI) | Burst Pressure 2 (MPa/PSI) | Burst Pressure 3 (MPa/PSI) |
|---|---|---|---|---|---|---|
| 6.3 | 1/4" | 50 (7500) | 13 (3.3) | 150 (22500) | 160 (24000) | 170 (24200) |
| 10 | 3/8" | 40 (5700) | 25 (6.5) | 120 (17100) | 130 (18600) | 170 (24200) |
| 12.5 | 1/2" | 40 (5700) | 75 (19.8) | 120 (17100) | 140 (20000) | 140 (20000) |
| 20 | 3/4" | 35 (5000) | 135 (35.2) | 110 (15700) | 120 (17100) | 140 (20000) |
| 25 | 1" | 35 (5000) | 250 (66.1) | 110 (15700) | 130 (18600) | 140 (20000) |
| 40 | 1 1/2" | 35 (5000) | 450 (119) | 110 (15700) | 110 (15700) | 110 (15700) |
