SERIES
Threaded Couplers
Thread Locked Type Hydraulic Couplings(Steel) Kvs Series
The KVS Series Thread Locked Type Hydraulic Couplings feature a robust steel construction with precision-knurled barrel coupler body for positive grip. Designed for high-cycle industrial applications, the KVS series delivers reliable thread-locked performance with excellent pressure and temperature resistance.
Material
Carbon Steel
Surface finish
Zinc Plated / Phosphated
Application
Industrial machinery, hydraulic systems, manufacturing equipment
Threaded CouplersSERIES
Threaded Couplers
ThreadLockedTypeHydraulicCouplings(Steel)KvsSeries
The KVS Series Thread Locked Type Hydraulic Couplings feature a robust steel construction with precision-knurled barrel coupler body for positive grip. Designed for high-cycle industrial applications, the KVS series delivers reliable thread-locked performance with excellent pressure and temperature resistance.
Material: Carbon Steel;
Surface Treat: Zinc Plated / Phosphated;
Application: Industrial machinery, hydraulic systems, manufacturing equipment
Technical Data
Body Size (in)
Specifications
1/4", 3/8", 1/2", 3/4", 1"
Rated Pressure (Bar)
350, 300, 300, 250, 250
Key Features
Connexion by screwing together the two parts
Disconnexion by unscrewing the two parts
Shut off by poppet valve
Connectable under residual pressure
Disconnexion under residual pressure
Interchangeability according to Faster Internal Standards
Specifications
Standard
ISO 7241-2
Body Material
Carbon Steel
Seal Material
NBR
Surface Treatment
Zinc Plated
Technical Specifications
- High grade carbon steel tempered or carbonitride for specific stressed area
- NBR
- Backup ring in PTFE
- -25°C to +125°C (-13°F to +257°F)
- According to ISO 7241-2
Applications
Industrial hydraulic machinery
Manufacturing equipment
Steel and metal processing
General industrial applications
Industrial hydraulic machinery
Manufacturing equipment
Steel and metal processing
General industrial applications

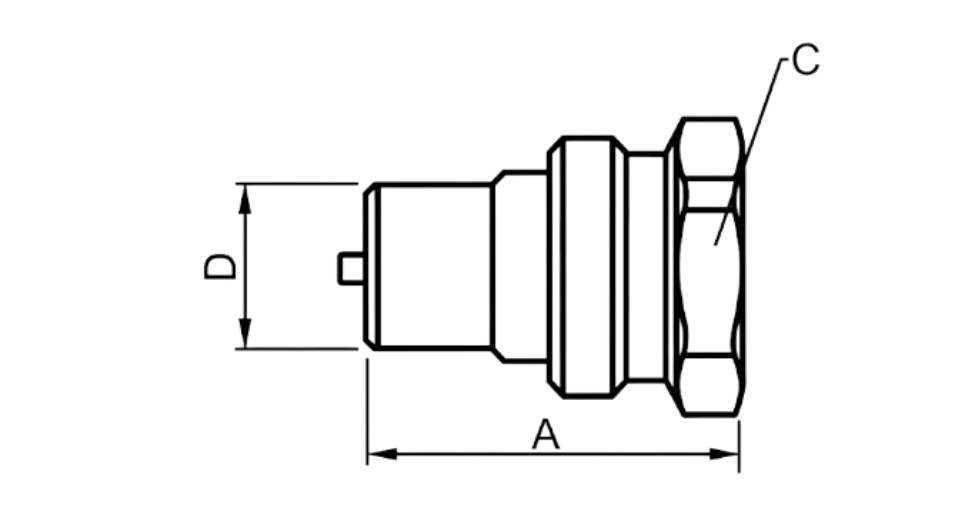

Nipple Female Thread / Male
| Part No. | Thread Size | Overall Length (mm) | Hex Size (mm) | Largest Diameter (mm) | Part No. | Thread Size | Overall Length (inch) | Hex Size (inch) | Largest Diameter (inch) |
|---|---|---|---|---|---|---|---|---|---|
| KVS-02PF | G1/4 | 43 | 25 | 14.1 | KVS-N02PF | NPT1/4 | 1.69 | 0.98 | 0.56 |
| KVS-03PF | G3/8 | 48 | 32 | 18.9 | KVS-N03PF | NPT3/8 | 1.89 | 1.26 | 0.74 |
| KVS-04PF | G1/2 | 53 | 34 | 20.5 | KVS-N04PF | NPT1/2 | 2.09 | 1.34 | 0.81 |
| KVS-06PF | G3/4 | 63 | 46 | 27.9 | KVS-N06PF | NPT3/4 | 2.4 | 1.81 | 1.1 |
| KVS-08PF | G1 | 72 | 50 | 31.3 | KVS-N08PF | NPT1 | 2.83 | 1.97 | 1.23 |
| KVS-10PF | G1 1/4 | 86 | 65 | 43.9 | KVS-N10PF | NPT1 1/4 | 3.39 | 2.56 | 1.73 |
| KVS-12PF | G1 1/2 | 95 | 80 | 53.4 | KVS-N12PF | NPT1 1/2 | 3.74 | 3.15 | 2.1 |
| KVS-16PF | G2 | 118 | 110 | 81.9 | KVS-N16PF | NPT2 | 4.65 | 4.33 | 3.22 |
Couplers Female Thread / Female
| Part No. | Thread | Overall Length (mm) | Hex Size (mm) | Largest Diameter (mm) | Part No. | Thread | Overall Length (in.) | Hex Size (in.) | Largest Diameter (in.) |
|---|---|---|---|---|---|---|---|---|---|
| KVS-02SF | G1/4 | 68 | 22 | 30 | KVS-N02SF | NPT1/4 | 2.68 | 0.87 | 1.18 |
| KVS-03SF | G3/8 | 76 | 30 | 40 | KVS-N03SF | NPT3/8 | 2.99 | 1.18 | 1.57 |
| KVS-04SF | G1/2 | 87 | 34 | 45 | KVS-N04SF | NPT1/2 | 3.43 | 1.34 | 1.77 |
| KVS-06SF | G3/4 | 106 | 41 | 55 | KVS-N06SF | NPT3/4 | 4.17 | 1.61 | 2.17 |
| KVS-08SF | G1 | 124 | 50 | 60 | KVS-N08SF | NPT1 | 4.88 | 1.97 | 2.36 |
| KVS-10SF | G1 1/4 | 153 | 65 | 80 | KVS-N10SF | NPT1 1/4 | 6.02 | 2.56 | 3.15 |
| KVS-12SF | G1 1/2 | 172 | 75 | 98 | KVS-N12SF | NPT1 1/2 | 6.77 | 2.95 | 3.86 |
| KVS-16SF | G2 | 207 | 100 | 129 | KVS-N16SF | NPT2 | 8.15 | 3.94 | 5.08 |
Specification Details
| Body Size (in) | Rated Pressure (Bar) | Flow Rate (L) | Material | Standard Seal Material | Temperature Range (°C) |
|---|---|---|---|---|---|
| 1/4" | 800 | 8 | Carbon Steel | NBR (other materials available on request) | -20°C to +125°C |
| 3/8" | 800 | 18 | Carbon Steel | NBR (other materials available on request) | -20°C to +125°C |
| 1/2" | 730 | 40 | Carbon Steel | NBR (other materials available on request) | -20°C to +125°C |
| 3/4" | 730 | 55 | Carbon Steel | NBR (other materials available on request) | -20°C to +125°C |
| 1" | 630 | 100 | Carbon Steel | NBR (other materials available on request) | -20°C to +125°C |
| 1-1/4" | 600 | 140 | Carbon Steel | NBR (other materials available on request) | -20°C to +125°C |
| 1-1/2" | 400 | 300 | Carbon Steel | NBR (other materials available on request) | -20°C to +125°C |
| 2" | 350 | 1000 | Carbon Steel | NBR (other materials available on request) | -20°C to +125°C |
Dust Protection
| Dust protections - 防尘帽 | Dust protections - 防尘帽 | ||||||
|---|---|---|---|---|---|---|---|
| PVC | Aluminum | PVC | Aluminum | ||||
| mm | inch | Part Number | Colour | Part Number | Part Number | Colour | Part Number |
| 6.3 | 1/4 | CVS-1/4 | CVS-1/4S | PVS-1/4 | PVS-1/4S | ||
| 10 | 3/8 | CVS-3/8 | CVS-3/8S | PVS-3/8 | PVS-3/8S | ||
| 12.5 | 1/2 | CVS-1/2 | CVS-1/2S | PVS-1/2 | PVS-1/2S | ||
| 20 | 3/4 | CVS-3/4 | CVS-3/4S | PVS-3/4 | PVS-3/4S | ||
| 25 | 1 | CVS-1 | CVS-1S | PVS-1 | PVS-1S | ||
| 32 | 1 1/4 | CVS-1 1/4 | CVS-1 1/4S | PVS-1 1/4 | PVS-1 1/4S | ||
| 40 | 1 1/2 | CVS-1 1/2 | CVS-1 1/2S | PVS-1 1/2 | PVS-1 1/2S | ||
| 50 | 2 | CVS-2 | CVS-2S | PVS-2 | PVS-2S | ||
Performance Specifications
| Size (mm) | Size (in.) | Working Pressure (MPa/PSI) | Flow Rate (l/min / GPM) | Burst Pressure 1 (MPa/PSI) | Burst Pressure 2 (MPa/PSI) | Burst Pressure 3 (MPa/PSI) |
|---|---|---|---|---|---|---|
| 6.3 | 1/4" | 80 (11600) | 8 (2.1) | 240 (34800) | 240 (34800) | 250 (36300) |
| 10 | 3/8" | 80 (11600) | 18 (4.7) | 350 (50000) | 340 (49300) | 240 (34800) |
| 12.5 | 1/2" | 73 (10600) | 40 (10.6) | 220 (31900) | 220 (31900) | 220 (31900) |
| 20 | 3/4" | 73 (10600) | 55 (14.7) | 220 (31900) | 230 (33400) | 230 (33400) |
| 25 | 1" | 63 (9150) | 100 (26) | 240 (34800) | 190 (27600) | 190 (27600) |
| 32 | 1 1/4" | 60 (8700) | 140 (37) | 180 (26100) | 180 (26100) | 200 (29000) |
| 40 | 1 1/2" | 40 (5800) | 300 (79) | 150 (21800) | 120 (17100) | 150 (21800) |
| 50 | 2" | 35 (5000) | 1000 (264) | 130 (18600) | 130 (18600) | 105 (15250) |
